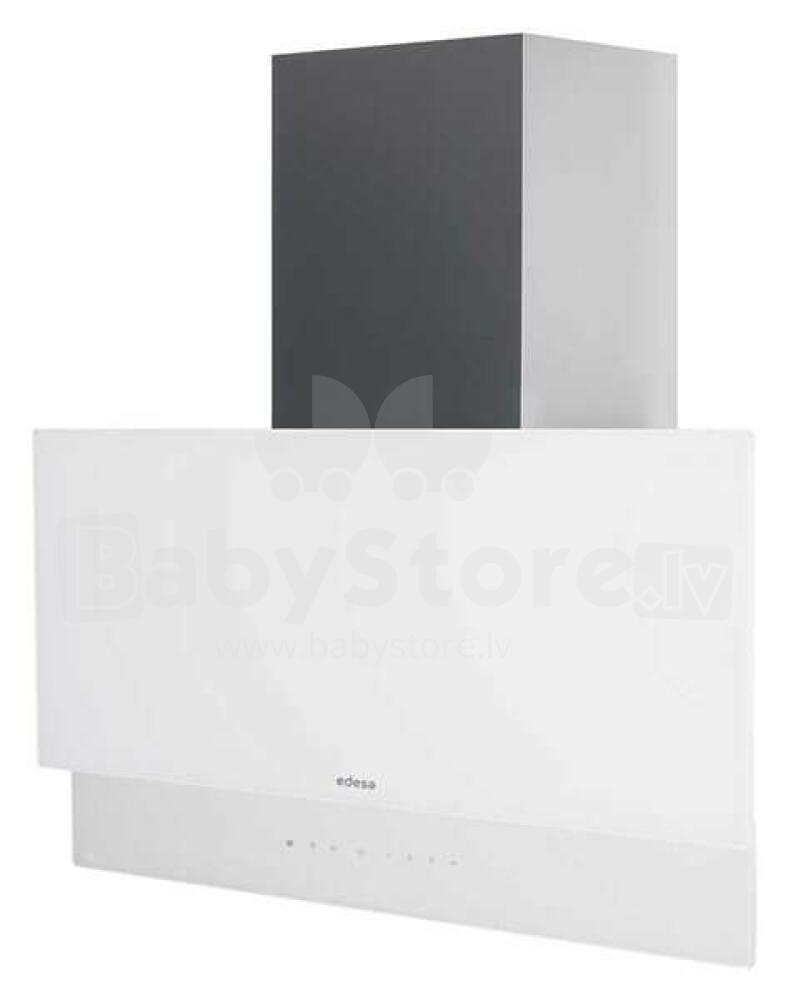

Edesa ECV-7832 GWH

70 cm wide vertical decorative hood
A+ energetic efficiency class
Perimeter extraction with opening posibility to be more eficient
4 extraction levels and booster

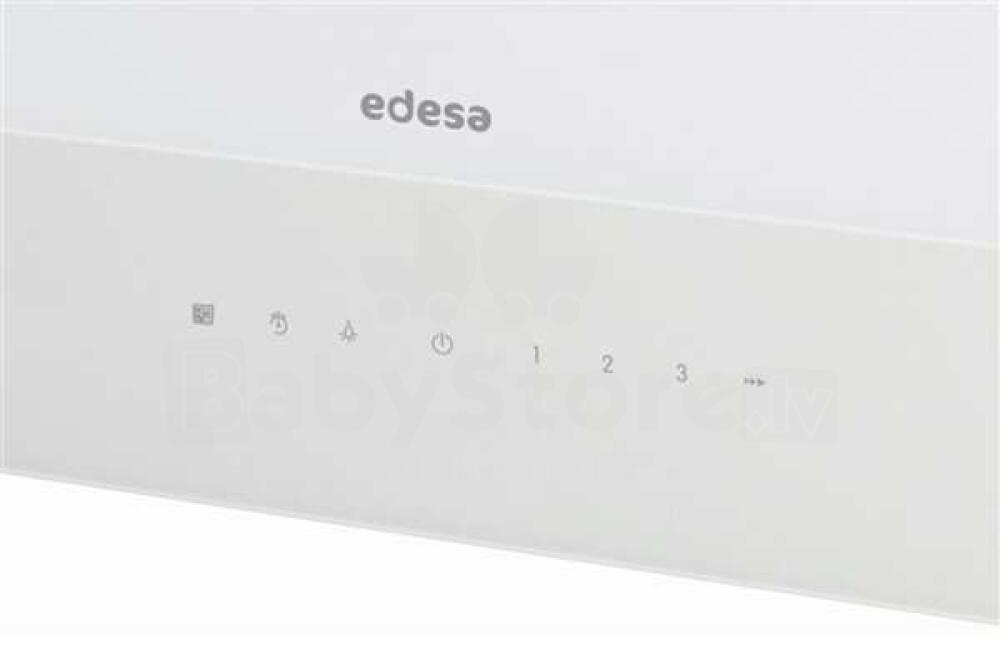

Retroilluminated touch control panel
130 W Brushless motor, BTDCA
Max / Min extraction rate: 820 / 200 m3/h
Max / Min noise levels: 67 / 40 dB(A)
Led strip lighting, A class
Light dimmer switch
Timer function for automatic switch-off
Filter saturation indicator
Demisting interior filter
Standard metallic filter with plastic handle washable in dishwasher

Performance
Maximum extraction power:	820 m³/h
Type of extraction:	Ducted/Recirculating
Fluid dynamic efficiency class:	A
Noise level:	67 dB
Lighting efficiency class:	A
Grease filtering efficiency class:	B
Boost function:	Y
Number of speeds:	4
Minimum distance from gas hob:	65 cm
Noise level (low speed):	40 dB
Noise level (medium speed):	65 dB
Noise level (boost mode):	67 dB
Pressure (Pa):	455
Design
Colour of product:	Stainless steel,White
Type:	Wall-mounted
Built-in display:	N
Number of bulbs:	1 bulb(s)
Bulb type:	LED
Exhaust connection diameter:	15 cm
Number of motors:	1
Motor included:	Y
Housing material:	Glass
Bulb power:	3.5 W
Control type:	Touch
Dimmable lighting:	Y
Timer:	Y
Filtering
Grease filter type:	Aluminium
Number of filters:	1 pc(s)
Washable filter:	Y
Filter cleaning indicator:	Y
Number of filter layers:	1 pc(s)
Power
Energy efficiency class:	A+
AC input voltage:	220 - 240 V
AC input frequency:	50 - 60 Hz
Motor power:	130 W
Annual energy consumption:	22.8 kWh
Auto power off:	Y
Connected load:	133.5 W

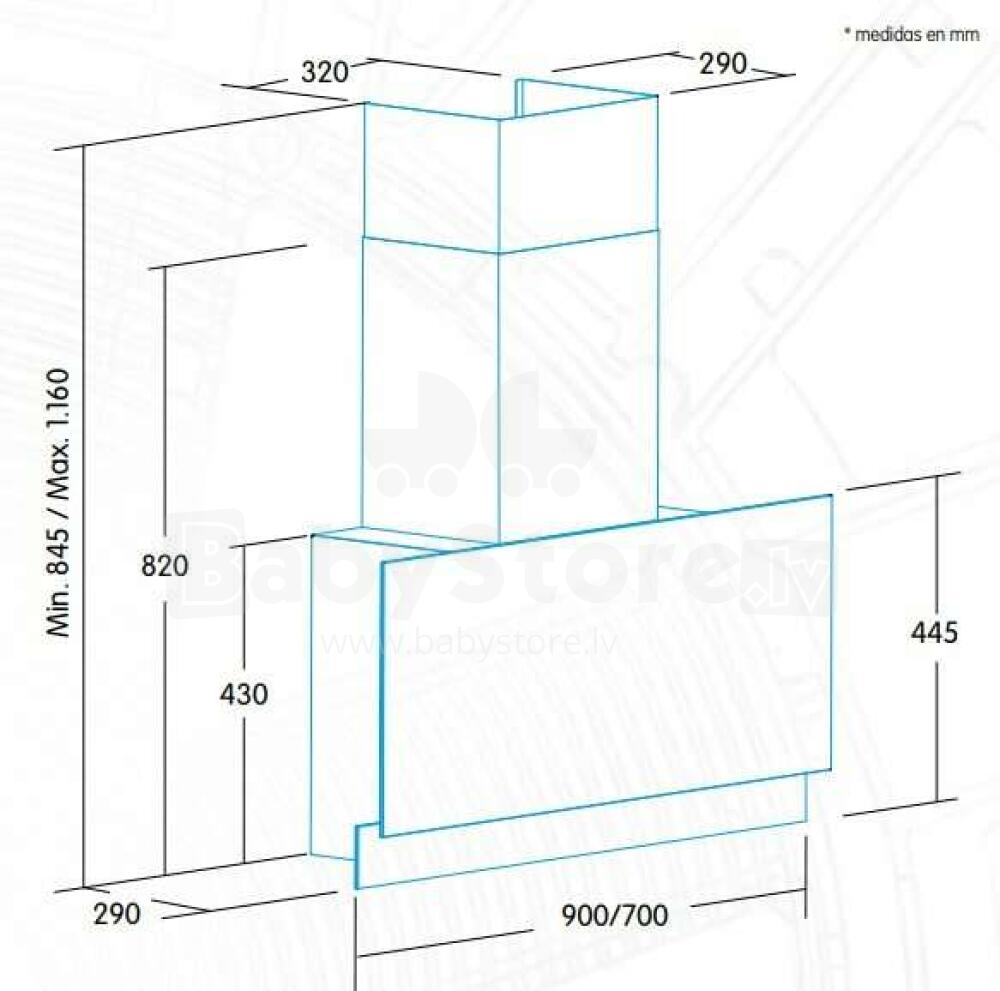

Weight & dimensions
Depth:	290 mm
Width:	700 mm
Height:	1200 mm
Height (min):	84.5 cm
Height (max):	120 cm
