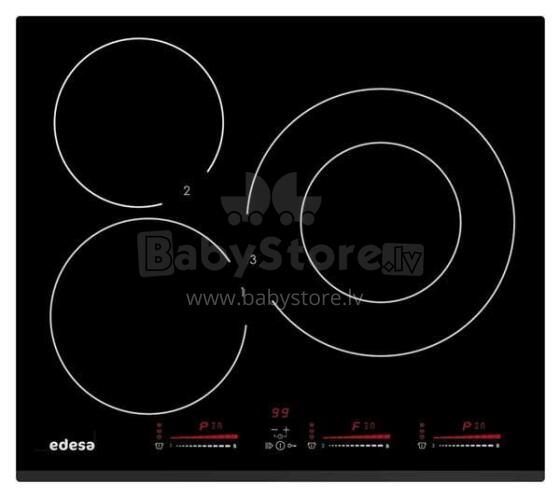

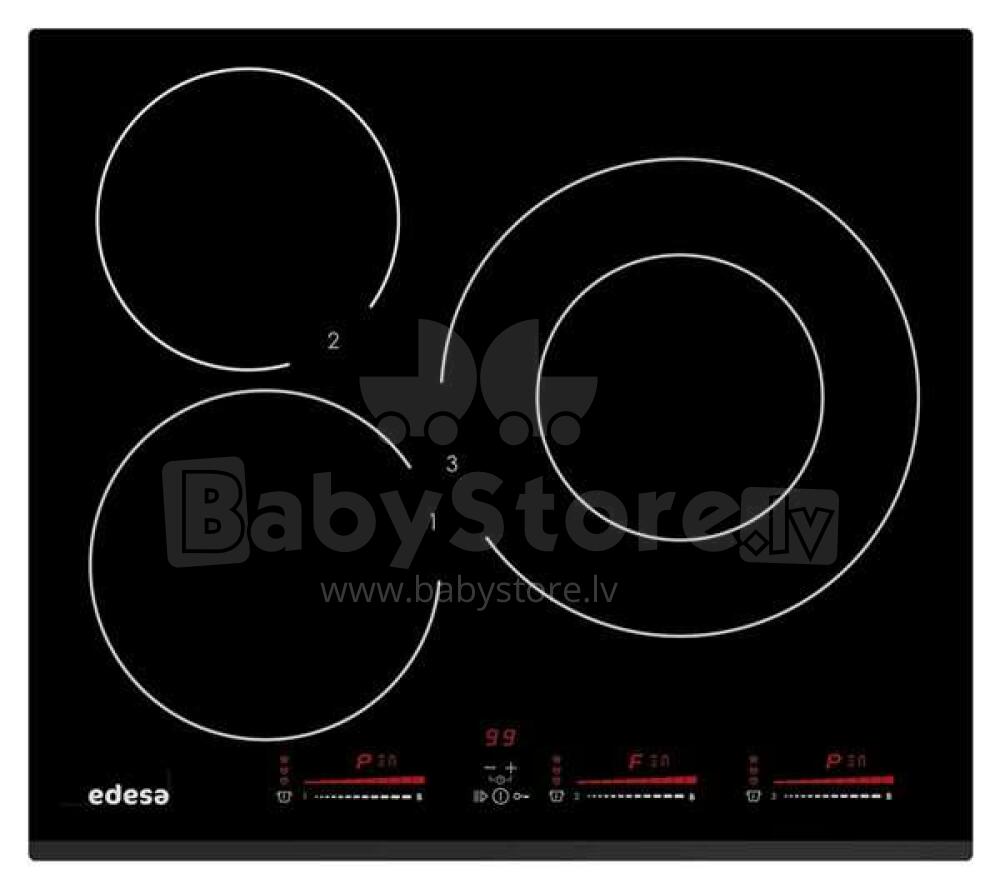

Edesa EIM-6330 B

Induction hob with Frontal bevelled
3 Zone: One of 30 cm, other of 22 cm and other 18 cm diameter

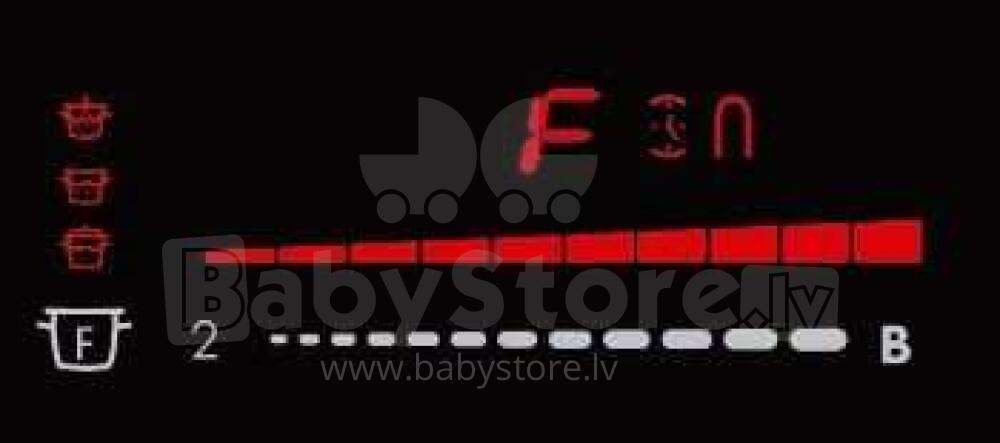

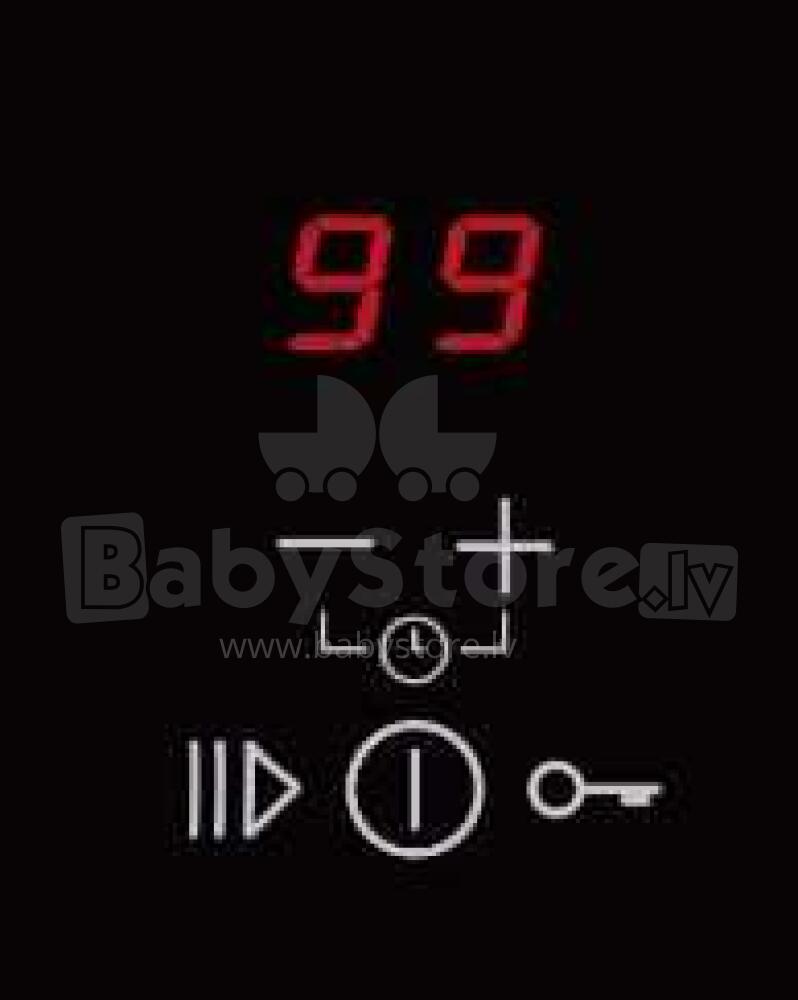

Multi Slider Touch control panel
Individual power selector per cooking zone, with 9 levels and Celeris
Timer selector
Preset cooking functions (Keep warm, Melting and Simmering)
Stop&Go function
Safety lock
Residual heat indicator
Max. Power: 7,1 kW

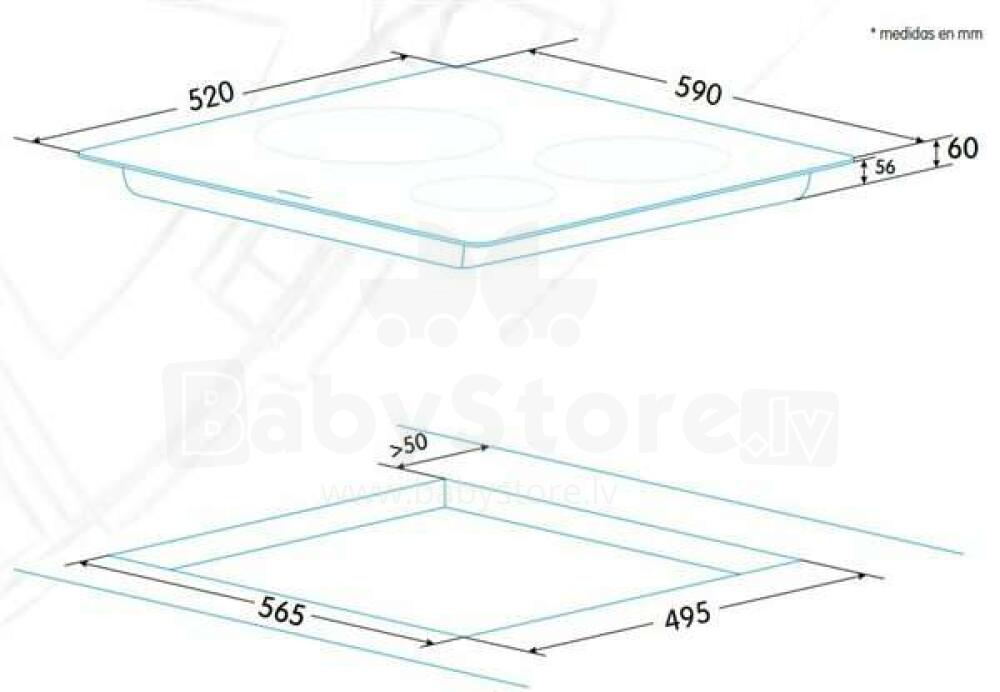

Dimensions (width x depth x height): 590 x 520 x 60 mm

Design
Case design:	Built-in
Hob type:	Zone induction hob
Top surface type:	Glass
Number of burners/cooking zones:	3
Number of electric cooking zones:	3
Colour of product:	Black
Regular burner/cooking zone:	2300 W
Simmer burner/cooking zone:	1200 W
Simmer burner/cooking zone shape:	Round
Simmer burner/cooking zone diameter:	18 cm
Regular burner/cooking zone diameter:	22 cm
Large burner/cooking zone:	2300 W
Regular burner/cooking zone shape:	Round
Large burner/cooking zone shape:	Round
Large burner/cooking zone diameter:	30 cm
Frame form:	Front bevel
Performance
Number of power levels:	9
Keep warm function:	Y
Pan detection:	Y
Stop & Go function:	Y
Ergonomics
Control position:	Top front
Control type:	Touch
Timer:	Y
Residual heat indicator:	Y
Child lock:	Y
Auto power off:	Y
Built-in display:	Y
Power
Connected load (electric):	7100 W
AC input frequency:	50 - 60 Hz
On/off switch:	Y
AC input voltage:	220 - 240 V
Weight & dimensions
Width:	590 mm
Depth:	520 mm
Height:	60 mm
Height under worktop:	5.6 cm
Installation compartment width:	56.5 cm
Installation compartment depth:	49.5 cm
