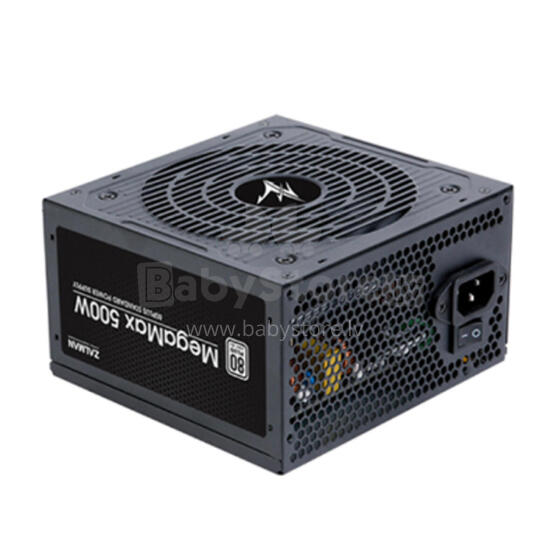

Efficient 80Plus power supply
Power | |
---|---|
Total power: | 500 W |
AC input voltage: | 200 - 240 V |
AC input frequency: | 50/60 Hz |
Input current: | 4 A |
Power factor: | 98 |
Combined power (+12V): | 450 W |
Max output current (-12V): | 0.5 A |
Power Factor Correction (PFC) type: | Active |
Combined power (+5Vsb): | 3 W |
Combined power (-12V): | 6 W |
Max output current (+3.3V): | 20 A |
Efficiency: | 86% |
Max output current (+12V): | 37.5 A |
Max output current (+5V): | 20 A |
Max output current (+5Vsb): | 3 A |
Power protection features: | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces | |
Number of SATA power connectors: | 3 |
CPU P4 connector (4-pin): | 1 |
Peripheral (Molex) power connectors (4-pin): | 3 |
Peripheral (Molex) power cable length: | 410 mm |
PCI Express power connectors (6+2 pin): | 2 |
Motherboard power cable length: | 55 cm |
PCI Express power connectors (8-pin): | 1 |
Floppy drive power connector: | 1 |
Cabling type: | Non-Modular |
Motherboard power connector: | 20+4 pin ATX |
ATX power connector (20+4 pin): | Y |
Performance | |
ATX version: | 2.31 |
80 PLUS certification: | 80 PLUS |
Mean time between failures (MTBF): | 100000 h |
Certification: | KC, CE, CB, RoHS, EAC |
Purpose: | PC |
Bearing technology: | FDB |
Power supply unit (PSU) form factor: | ATX |
Design | |
Colour of product: | Black |
Cooling type: | Active |
Fan diameter: | 12 cm |
Number of fans: | 1 fan(s) |
Fan location: | Top |
Fan speed: | 2000 - 2000 RPM |
Tehniskās detaļas | |
Sustainability certificates: | RoHS |
Operational conditions | |
Operating temperature (T-T): | 10 - 45 °C |
Weight & dimensions | |
Width: | 150 mm |
Depth: | 140 mm |
Weight: | 1.63 kg |
Height: | 86 mm |
Store | Size | Quantity | |
---|---|---|---|
Warehouse (5-7 working days) | 21 pcs. |
Quantity is FYI only, goods could be on reservation
