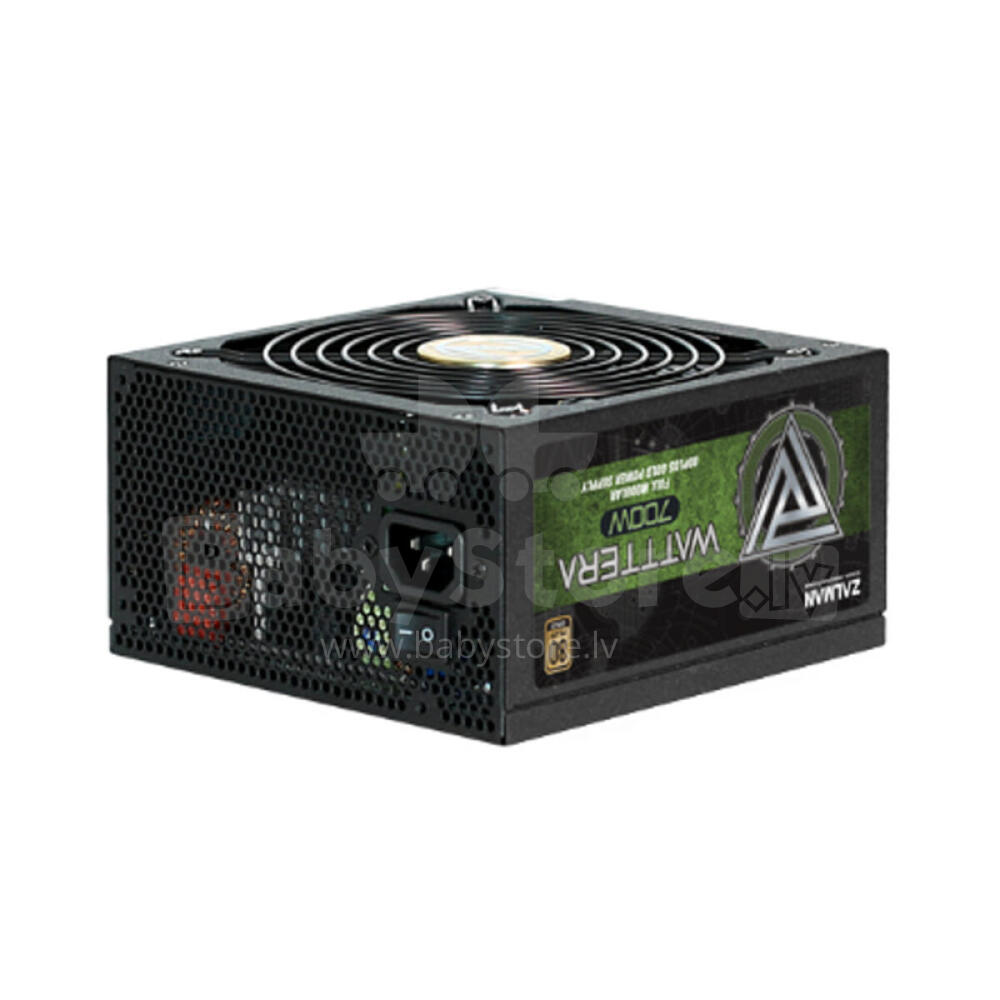

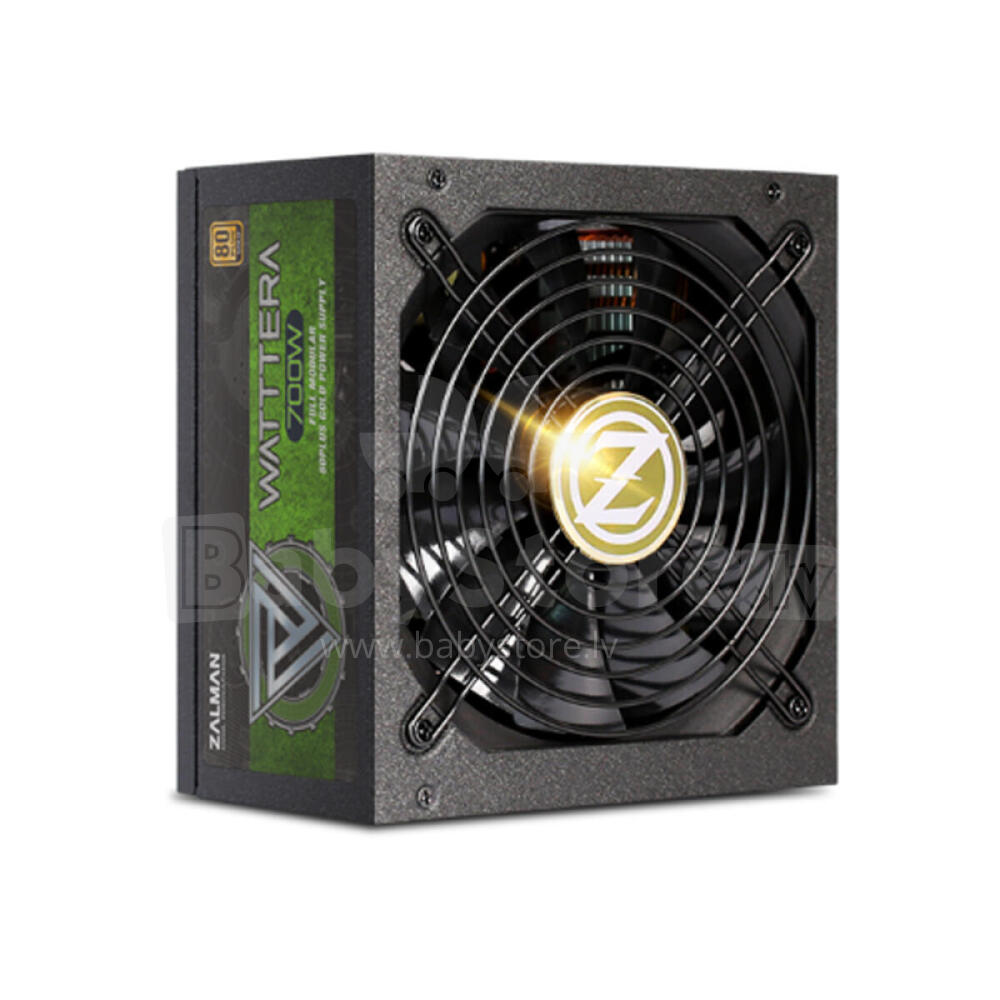

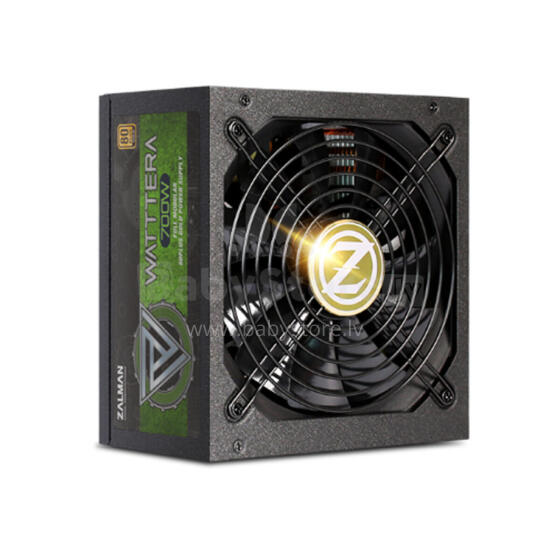

High-Efficiency silent computer power supply
| Power | |
|---|---|
| Total power: | 700 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Input current: | 4.5 - 9 A |
| Power factor: | 99.9 |
| Combined power (+12V): | 696 W |
| Combined power (-12V): | 3.6 W |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V): | 58 A |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 3 A |
| Efficiency: | 91% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

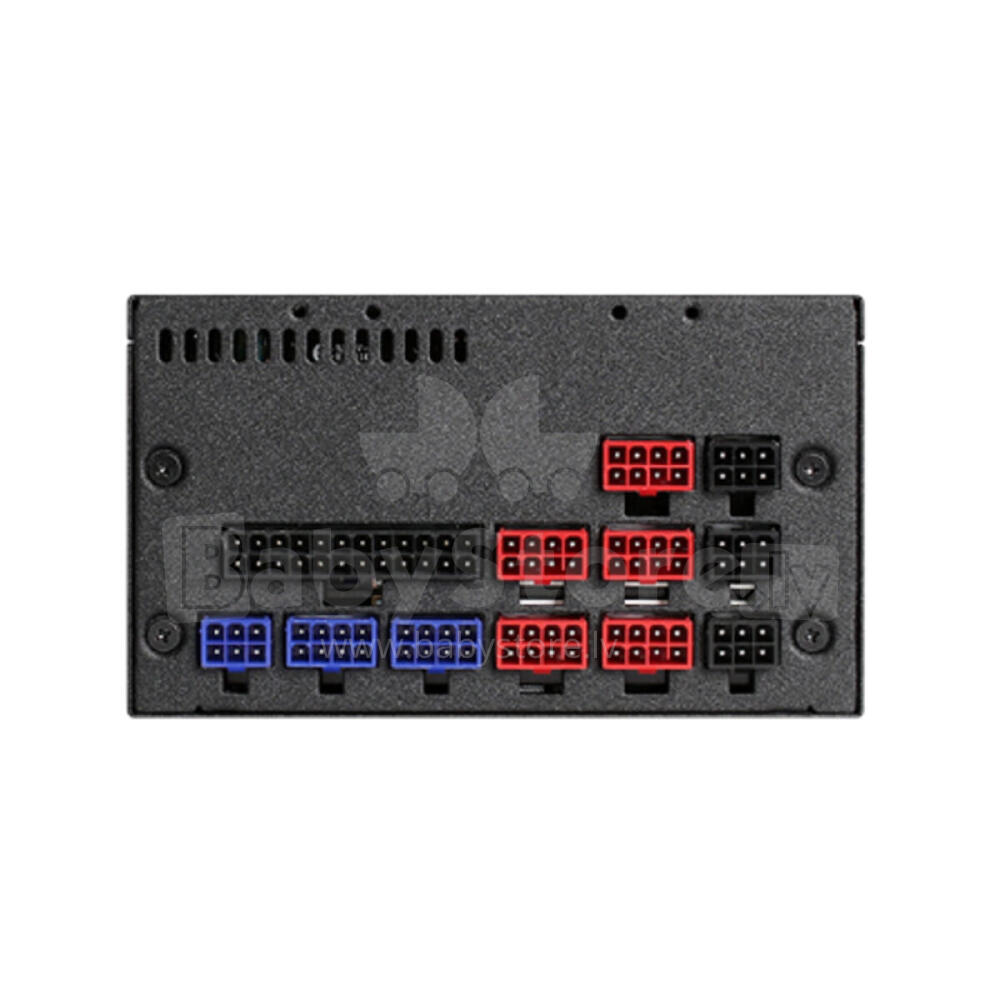

| Ports & interfaces | |
| Motherboard power connector: | 24-pin ATX |
| Motherboard power cable length: | 60 cm |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| Number of SATA power connectors: | 8 |
| SATA power cable length: | 600 mm |
| CPU power connector (4+4 pin): | Y |
| Peripheral (Molex) power cable length: | 600 mm |
| ATX Power connector (24-pin): | Y |
| PCI Express power connectors (6+2 pin): | 5 |
| PCI Express power cable length: | 55 cm |
| Floppy drive power connector: | 1 |
| EPS power connector (4+4 pin): | Y |
| CPU power cable length: | 55 cm |
| EPS power connector (8-pin): | Y |
| Cabling type: | Modular |
| Performance | |
| ATX version: | 2.31 |
| Mean time between failures (MTBF): | 100000 h |
| 80 PLUS certification: | 80 PLUS Gold |
| Silent mode: | Y |
| Purpose: | PC |
| Bearing technology: | Ball bearing |
| Power supply unit (PSU) form factor: | ATX |
| Certification: | UL, FCC, KC, CE, CB, RoHS, EAC |
| Design | |
| Colour of product: | Black |

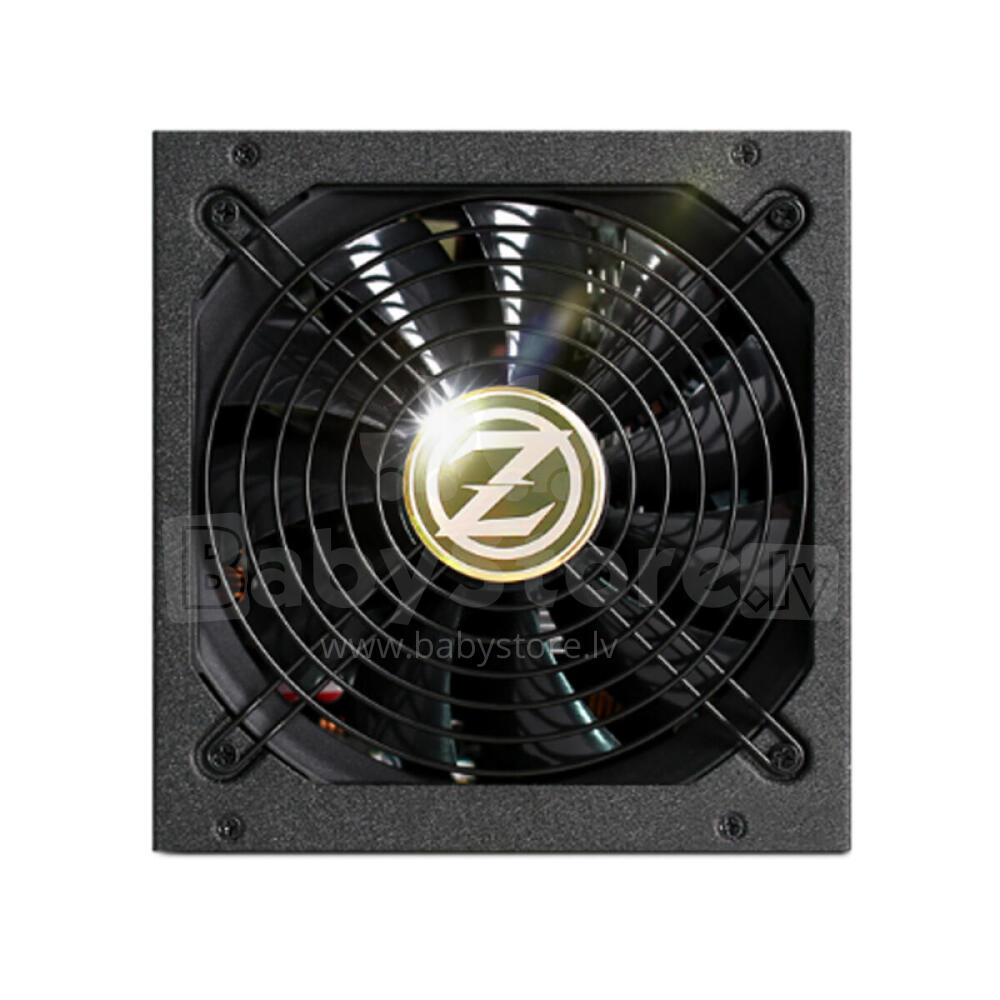

| Cooling type: | Active |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| On/off switch: | Y |
| Fan diameter: | 13.5 cm |
| Fan speed: | 1000 - 1900 RPM |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 160 mm |
| Height: | 86 mm |
| Weight: | 3.08 kg |
