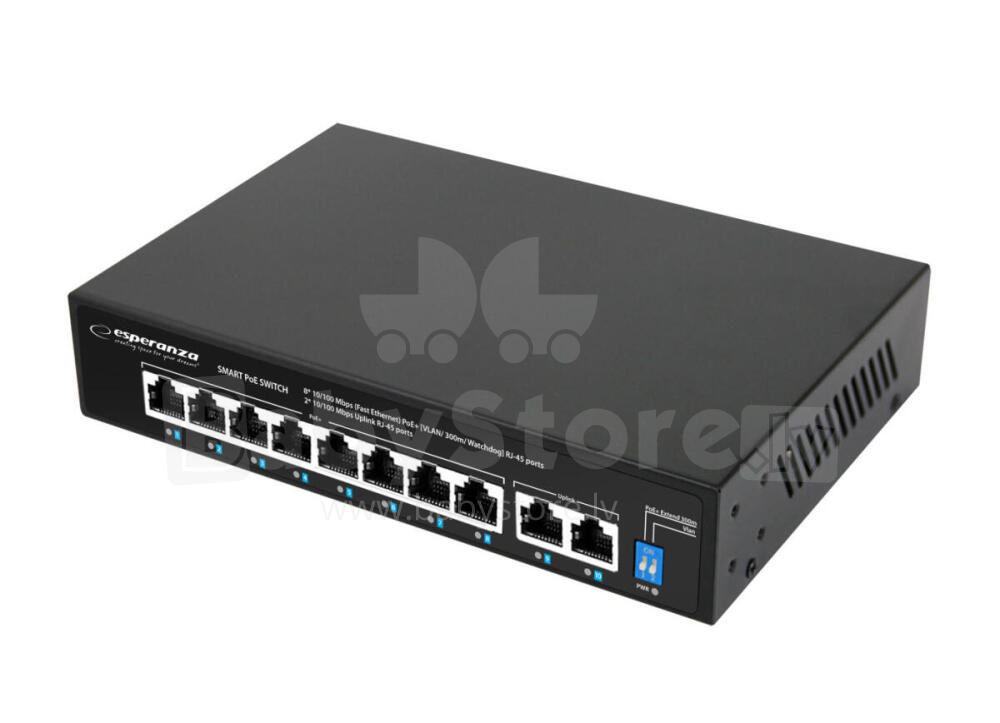

ESPERANZA 8 PoE + 2 UPLINK PORT ETHERNET SWITCH 10/100 SPOTTER

POE 8xPOE 2xUplink switch dedicated to IP monitoring. The switch allows up to 300 m of data transmission and power range for monitoring systems. No configuration required. The device is ideal for small and medium-sized monitoring systems. The automatic features of this switch make installation and operation easy and hassle-free.

• Ports: 8 pcs of 10/100 Mbps RJ45 PoE ports + 2 pcs RJ45 uplink ports with automatic link speed detection
• Auto MDI / MDIX patching
• Standard protocol: IEEE 802.3 10BASE-T, IEEE 802.3u 100Base-TX, IEEE 802.3x, IEEE802.3i
• 10Base-T
• Port 1-8 support standard IEEE 802.3af/at
• Type of transmission: Store and Forward
• Bandwidth: 2.0 Gbps
• Forwarding speed: 1.488 Mpps
• Buffer memory: 1.25 M
• MAC address table: 4 K
• Data flow control
• Support MAC self learning and updating
• POE and network LED indicator
• Twisted pair transmission:
  • 10BASE-T: Cat5 UTP (≤300 m)
  • 100BASE-TX: Cat5 or later UTP (≤100 m)
• Built in switch (no need to restart power supply):
  • Extend: AI extend 300 m transmission
  • VLan: Turn on, 1-4 Port support each port Isolation & VLAN
• Support Watchdog function by default: 1-4 Port suport AI-PoE Network self-healing
• Max/Average power per port: 30 W / 15.4 W
• Total power: 96 W
• Power supply PIN: 1/2(+), 3/6(-)
• Power consumption:
  • standby: <4 W
  • full load: 96 W
• Built in power adaptor 220-240 V / 50 Hz
• Cable lenght: 1 m
• Operating temperature:-20℃~55℃
• Storage temperature: -40℃~75℃
• Operating air humidity: 5% ~ 90%, non-condensing
• Storage humidity: 5% ~ 95%, non-condensing
• Dimensions: 195 x 135 x 40 [mm]
